New Brooklyn Four Shaft Loom
Introducing the Brooklyn Four Shaft Loom!
We are super excited to announce the launch of our latest multi-shaft table loom – the Brooklyn Four Shaft Loom! This loom has been designed to be an economic stepping-stone for rigid heddle weavers and all other new weavers who are ready to expand their weaving skills and explore the wonderful world of multi-shaft weaving. It makes weaving multi-shaft patterns simple and easy.
The Brooklyn Four Shaft Loom provides new and experienced weavers with
all the features they need to weave amazing fabric.
- Popular 40cm (16″) weaving width.
- Large beam to beam depth of 73cm (28 1⁄2″) the same as all our table looms.
- Smooth, quiet overhead beater with auto bounce-back for even beating at the fell.
- Generous rising shed.
- Smooth action levers for light and easy pattern changes.
- Texsolv cord lifts shafts evenly from both sides through frictionless nylon loom cord guides, and allows easy shaft height adjustment.
- A total of 320 Texsolv 22cm (8 1⁄2″) heddles are supplied giving 80 heddles per shaft, enough for a balanced 20epi weave over the full width.
- Stainless steel 10dpi reed.
- Beater will accept over width reeds and can be locked for warping.
- Strong 40 teeth nylon ratchets, handles and clicker pawls allow comfortable warp tension and control.
- Rubber feet to keep your loom from moving when weaving.

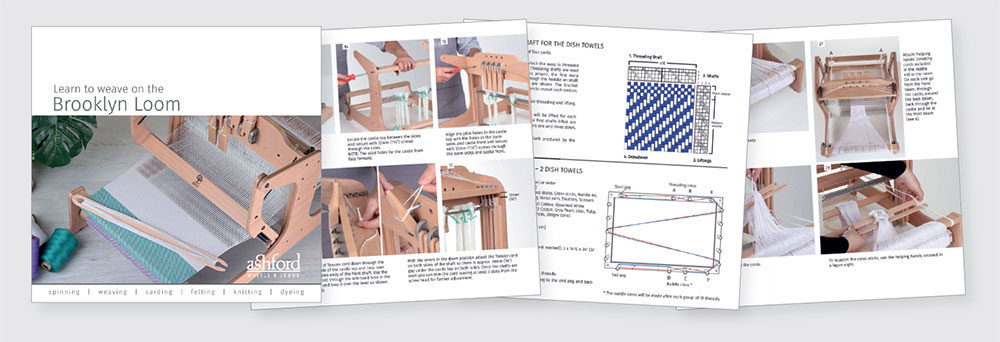

- Kit includes 2 shuttles, 5 cross/warp sticks, 10 cardboard warp separating sticks, threading hook and a full step-by-step colour assembly, warping and weaving instruction booklet.
- The loom is made using strong beech hardwood with ply sides that combine to make the Brooklyn Four Shaft Loom robust, light and easy to move.
- Quick and easy to assemble.
- Choose to leave natural or finish with Ashford Finishing Wax Polish, oil, lacquer or decorate to your preference.
-

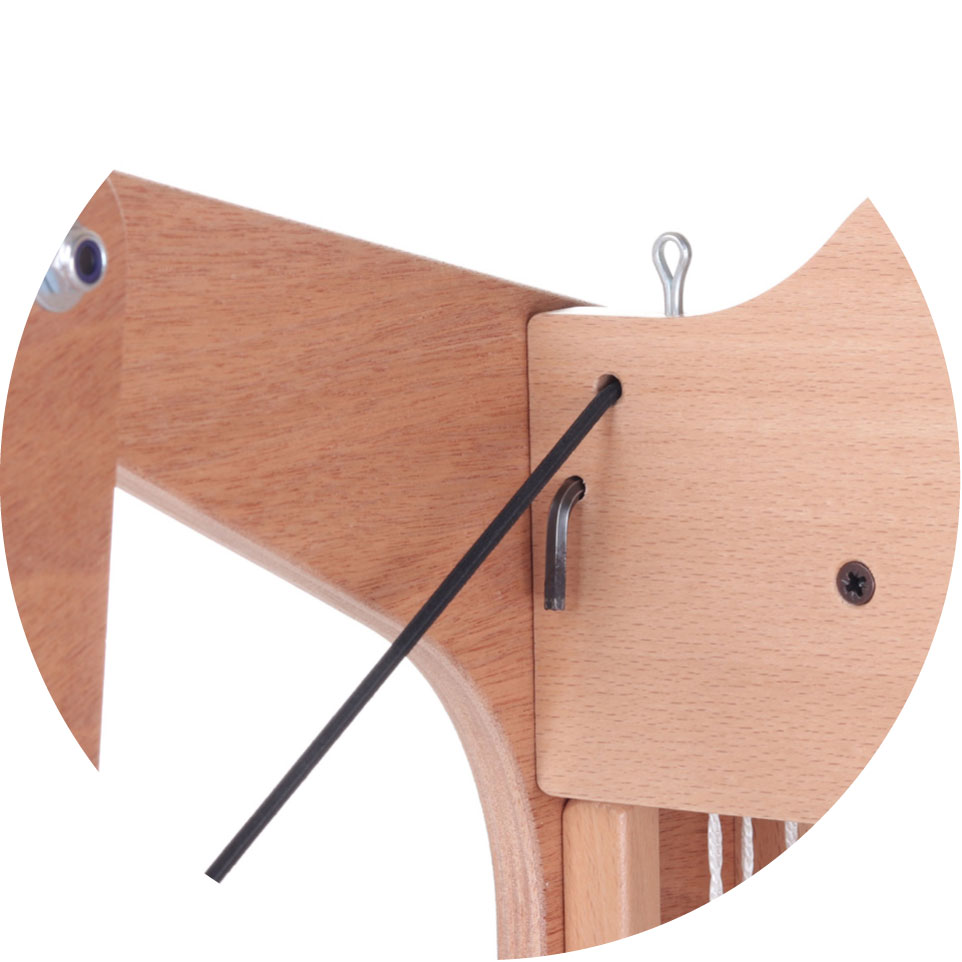

- Bungy cords for auto bounce-back, storage for hex wrench and split pins
-

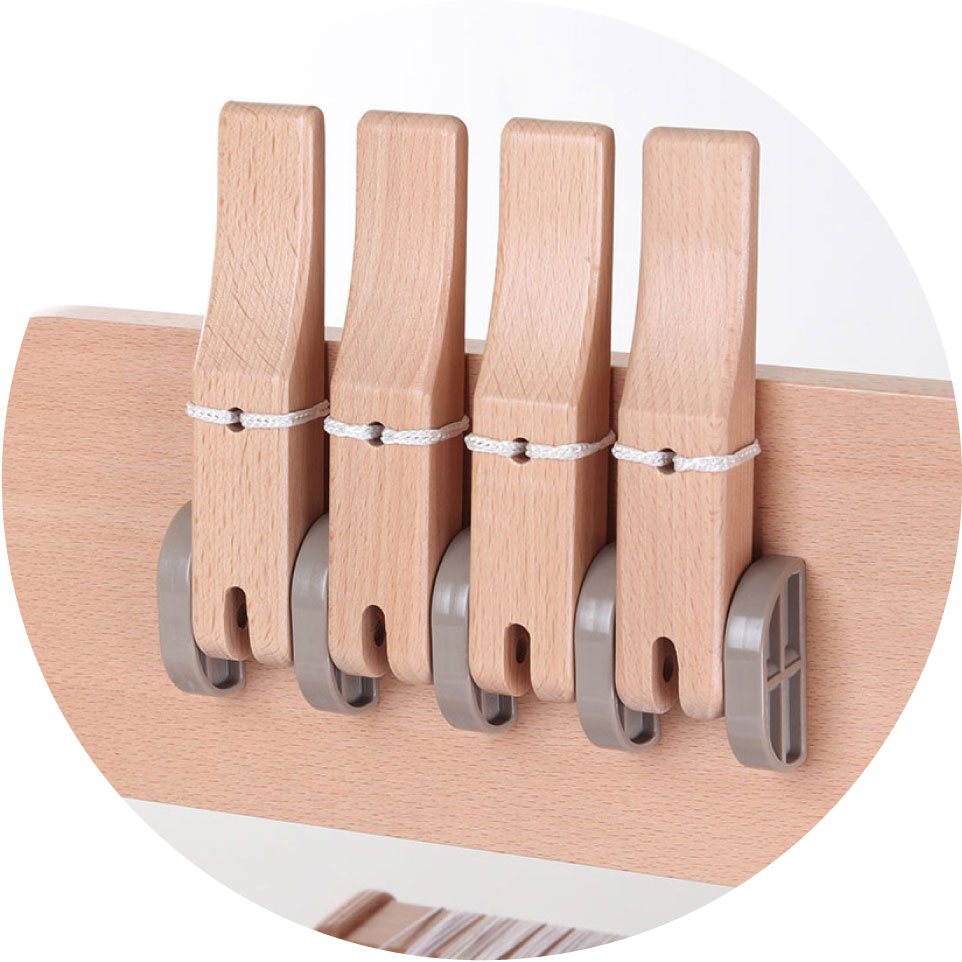

- Smooth action, light levers
-

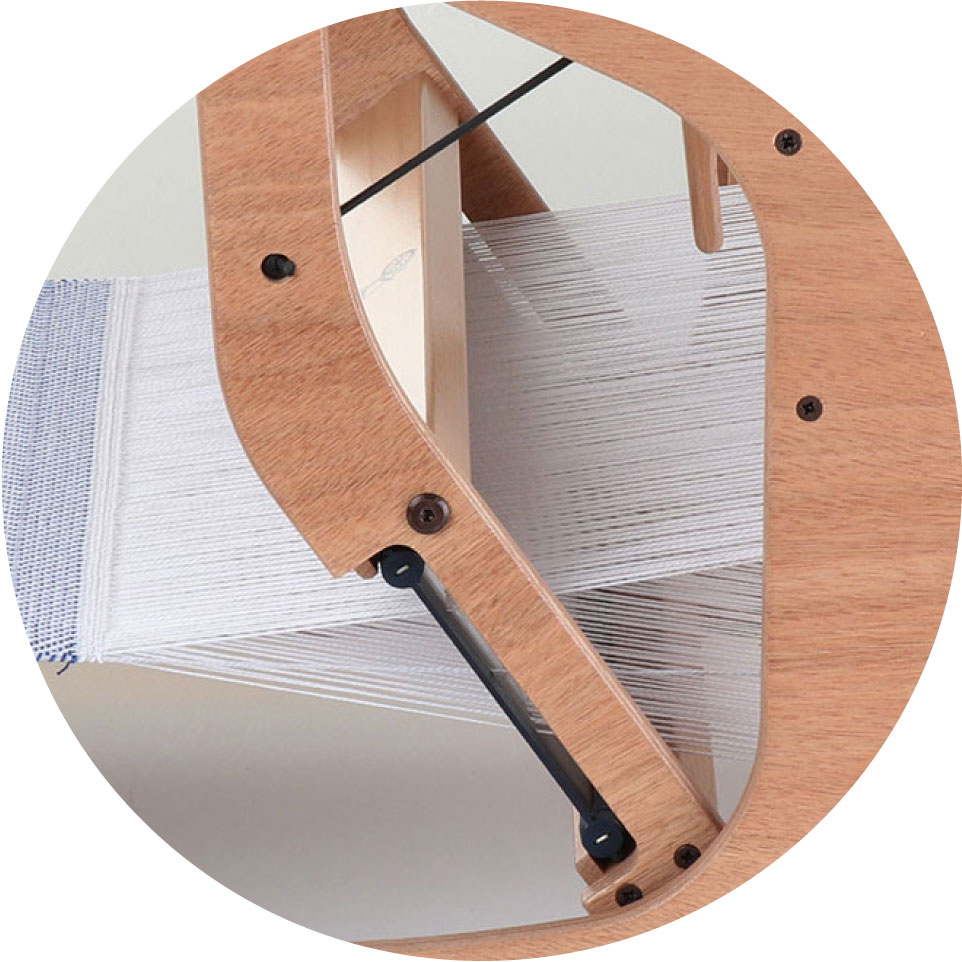

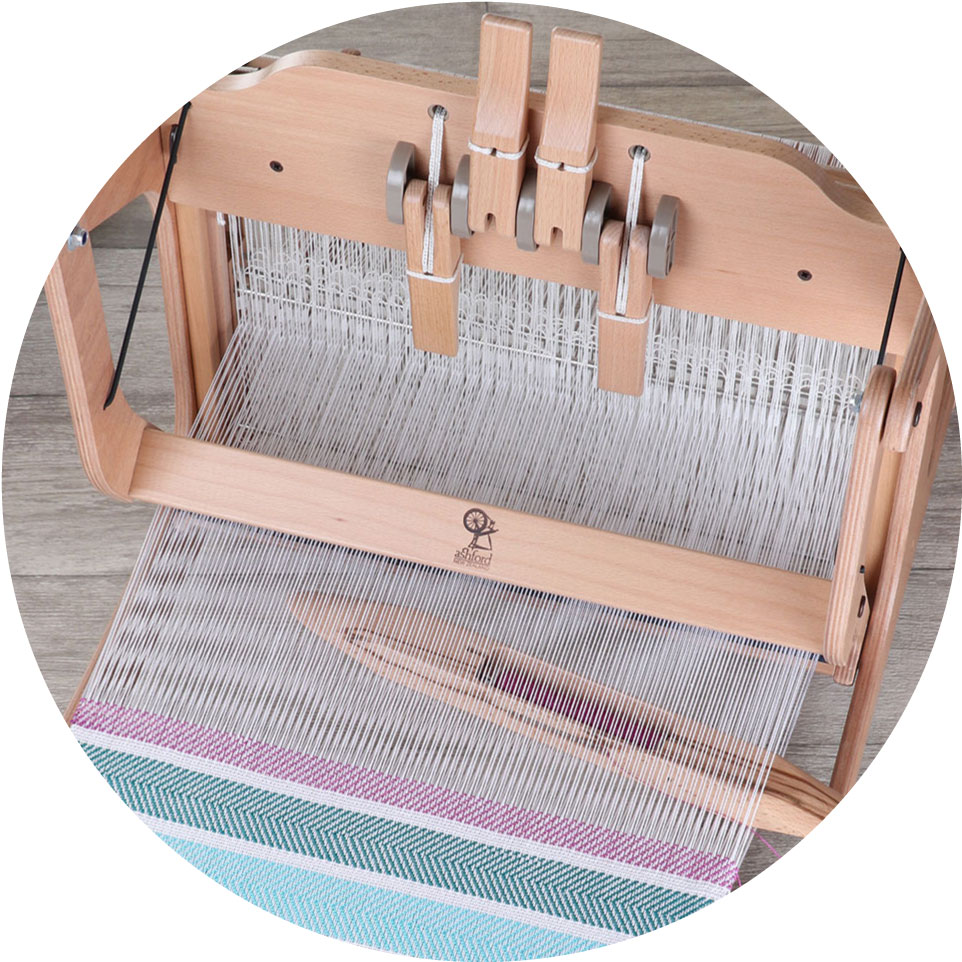

- Smooth, quiet overhead beater with auto bounce-back
-
- Generous rising shed
-

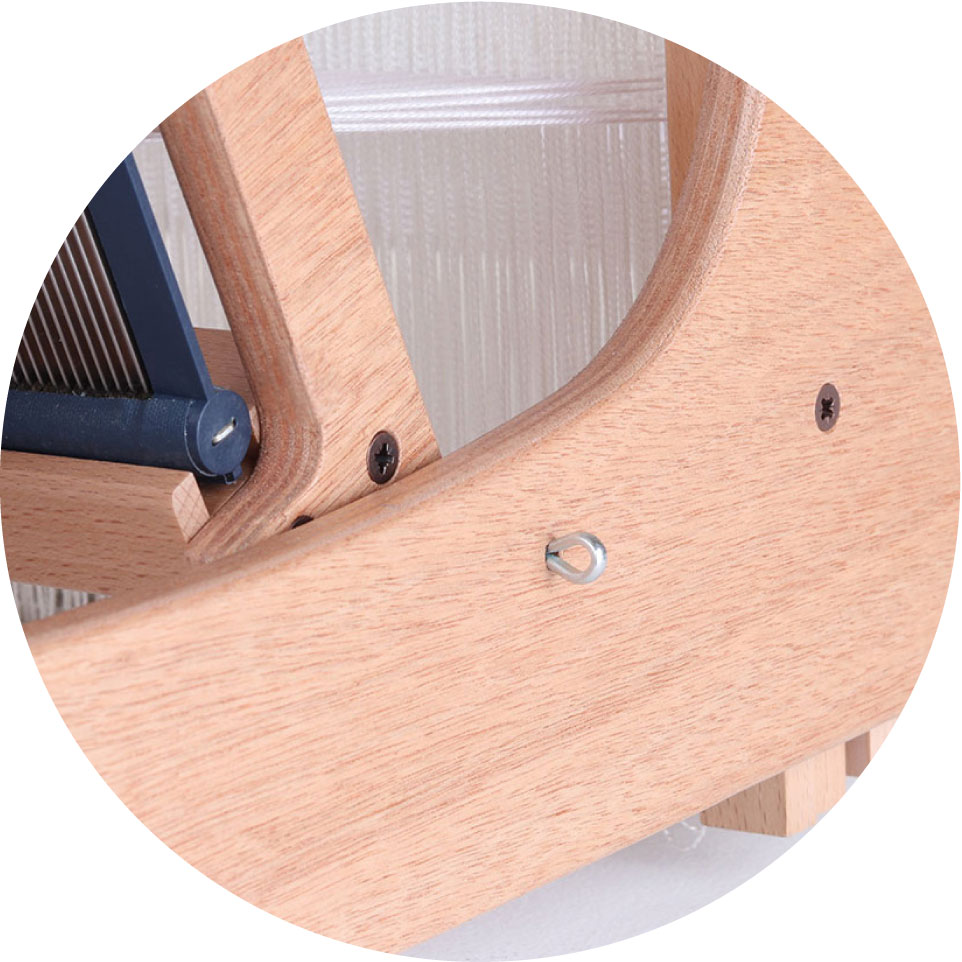

- Split pins hold reed in place when sleying
-

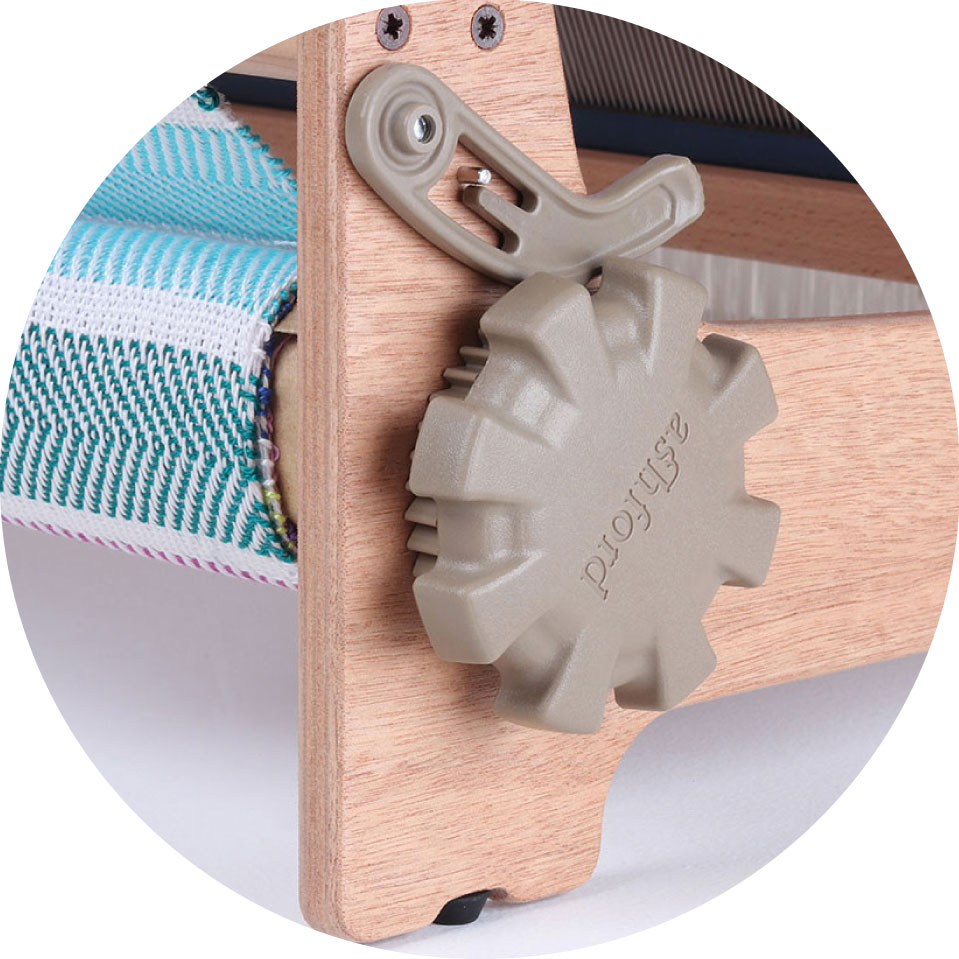

- Strong nylon ratchets, handles and pawls
To order contact your local Ashford dealer today!
Optional accessories: Stainless steel 6, 8, 10, 12 and 16dpi reeds, additional Texsolv heddles, raddle kit, warping frames, warping mill, boat shuttles and bobbins.
We recommend The Handweaver’s Pattern Directory by Anne Dixon as the perfect companion for your Brooklyn Four Shaft Loom.
A comprehensive introduction to the tools, equipment, fibres, and yarns used with four-shaft looms.
This reference features patterns for 600 different weaves, including twill, zigzag, diamond, herringbone, and block. Colour photographs and large-scale drawings allow weavers to closely examine the details, and the compact size and lay-flat binding is convenient for keeping near the loom. A handbook that is essential for all four-shaft weavers, this manual includes weaving basics, specialised projects organised by degree of difficulty, finishing techniques, resources, and a glossary of terms.
ISBN978‐1‐59668‐040‐1
